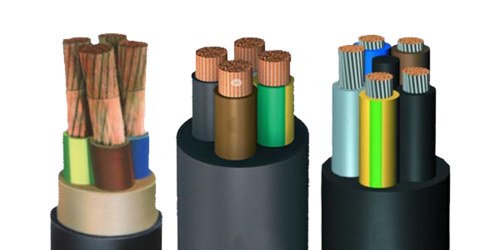

h07rnf cable

Product Description

h07rnf cables can be availed in single core to 5 core design choices to meet precise application needs. Color of core varies as per their number. These cables use highly flexible class 5 copper conductor that conforms to IEC/DIN/VDE norms. These rubber insulated cables are equipped with neoprene jacket for their stable thermal properties. Provided h07rnf cables can be used at -25 degree C to 70 degree C working temperature range. Flame retardant quality of these cables has been checked as per IEC 60332-1 norms.

h07rnf cable :-

Cable Design
Conductor : Flexible Class 5 copper conductor according to DIN VDE 0295,IEC 60228.
Standard : generally conforms to, DIN VDE 0282 PART 810, IEC 245
Insulation : Rubber El-4 to VDE 0282 Part-1
Sheath : Neoprene Jacket EM-2
Working Temp : -25°C to 70°C
Operating Temp : -20°c to max. +90°C
Nominal voltage : 450/750 V
Test voltage : 2500V
Min. bending radius : 8 x cable Diameter
Flame propagation : Flame retardant test as per IEC 60332-1
Core Identification
1 Core - Black
2 Core - Blue & Brown
3 Core - Green-and-Yellow, Blue, Brown
4 Core - Green-and-Yellow, Brown, Black, Grey or Green-and-Yellow, Blue, Brown, Black
5 Core - Green-and-Yellow, Blue, Brown, Black and Grey
