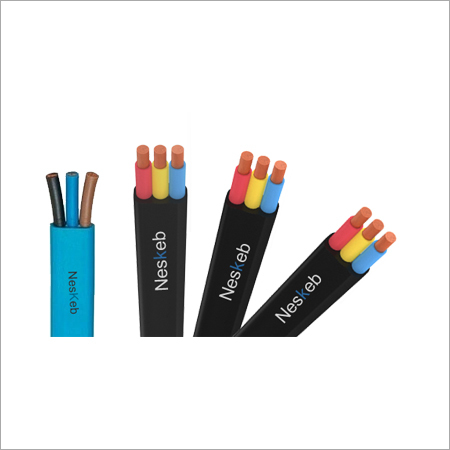

PVC 3 Core Submersible Flat Cable
15 INR/Meter
Product Details:
X
PVC 3 Core Submersible Flat Cable Price And Quantity
- 15 INR/Meter
- 100 Meter
PVC 3 Core Submersible Flat Cable Trade Information
- 1 Meter Per Week
- 1 Week
Product Description
Technical Specifications:
| Conductor | Insulation | Total Thickness of Double Sheath | ||||||
|---|---|---|---|---|---|---|---|---|
| Size of Cable | No. of Wire / Size of Wire | Thickness | Core OD | Thickness | Overall Size | Conductor Resistance at 20C (max) | Current Rating at 40C | |
| Thickness | Width | |||||||
| Sq. mm. | Nos./mm | mm | mm | mm | mm | mm | /km | Amps. |
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.15 | 6.0 | 12.8 | 12.1 | 14 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.15 | 6.4 | 14.6 | 7.41 | 18 |
| 4.0 | 56/0.30 | 1.0 | 4.5 | 1.15 | 7.4 | 16.8 | 4.95 | 26 |
| 6.0 | 84/0.30 | 1.0 | 5.3 | 1.15 | 7.9 | 18.7 | 3.30 | 31 |
| 10.0 | 140/0.30 | 1.0 | 6.5 | 1.4 | 9.9 | 23.7 | 1.91 | 42 |
| 16.0 | 224/0.30 | 10. | 8.0 | 1.4 | 11.4 | 28.0 | 1.21 | 57 |
| 25.0 | 350/0.30 | 1.2 | 10.1 | 2.0 | 14.7 | 35.5 | 0.780 | 72 |
| 35.0 | 490/0.30 | 1.2 | 11.3 | 2.0 | 16.2 | 39.5 | 0.554 | 90 |
| 50.0 | 703/0.30 | 1.4 | 13.6 | 2.2 | 18.3 | 45.5 | 0.386 | 115 |
| 70.0 | 988/0.30 | 1.4 | 15.3 | 2.2 | 20.0 | 51.0 | 0.272 | 143 |
| 95.0 | 1349/0.30 | 1.6 | 18.0 | 2.4 | 23.5 | 60.0 | 0.206 | 165 |
As Per IS:694:2010
| Conductor | Insulation | Sheath | Current Rating at 40C | |||
| Size of Cable | No. of Wire / Size of Wire | Thickness | Thickness | Overall Size |
|
|
| Thickness | Width |
| ||||
| Sq. mm. | Nos./mm | mm | mm | mm | mm | Amps. |
| 1.5 | 22/0.30 | 0.6 | 0.9 | 5.2 | 11.3 | 14 |
| 2.5 | 36/0.30 | 0.7 | 1.0 | 6.2 | 13.3 | 18 |
| 4.0 | 56/0.30 | 0.8 | 1.0 | 7.0 | 15.6 | 26 |
| 6.0 | 84/0.30 | 0.8 | 1.1 | 7.4 | 17.7 | 31 |
