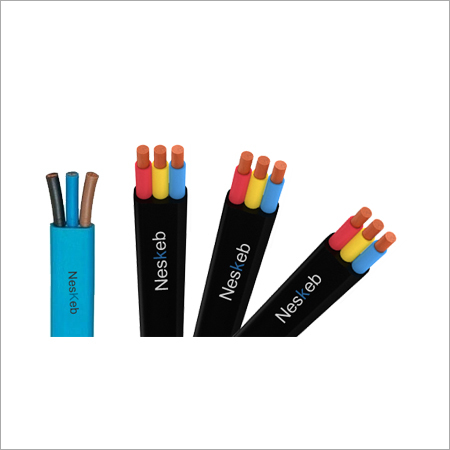

PVC 4 Core Submersible Flat Cable

Size of Cable

No. of Wire / Size of Wire

Thickness

Core OD

Thickness

Overall Size

Conductor Resistance at 20C (max)

Current Rating at 40C

Thickness

Width

Sq. mm.

Nos./mm

mm

mm

mm

mm

mm

/km

Amps.

1.5

22/0.30

0.8

3.25

1.3

6.0

15.8

12.1

14

2.5

36/0.30

0.9

3.84

1.3

6.5

18.0

7.41

18

4.0

56/0.30

1.0

4.5

1.45

7.6

21.0

4.95

26

6.0

84/0.30

1.0

5.3

1.5

7.9

24.3

3.30

31

10.0

140/0.30

1.0

6.5

1.8

9.9

29.7

1.91

42

16.0

224/0.30

1.0

8.0

1.95

11.8

36.0

1.21

57

25.0

350/0.30

1.2

10.1

2.0

14.7

45.1

0.780

72

35.0

490/0.30

1.2

11.5

2.0

16.2

50.1

0.554

90

50.0

700/0.30

1.4

13.6

2.2

18.3

58.1

0.386

115

70.0

988/0.30

1.4

15.3

2.2

20.0

66.5

0.272

145

95.0

1349/0.30

1.6

18.0

2.4

23.5

77.3

0.21

165
